What Goes Where: Disconnection Point Kit

By

In our new 4 part video series, James takes you through what labels go where on your solar installs.

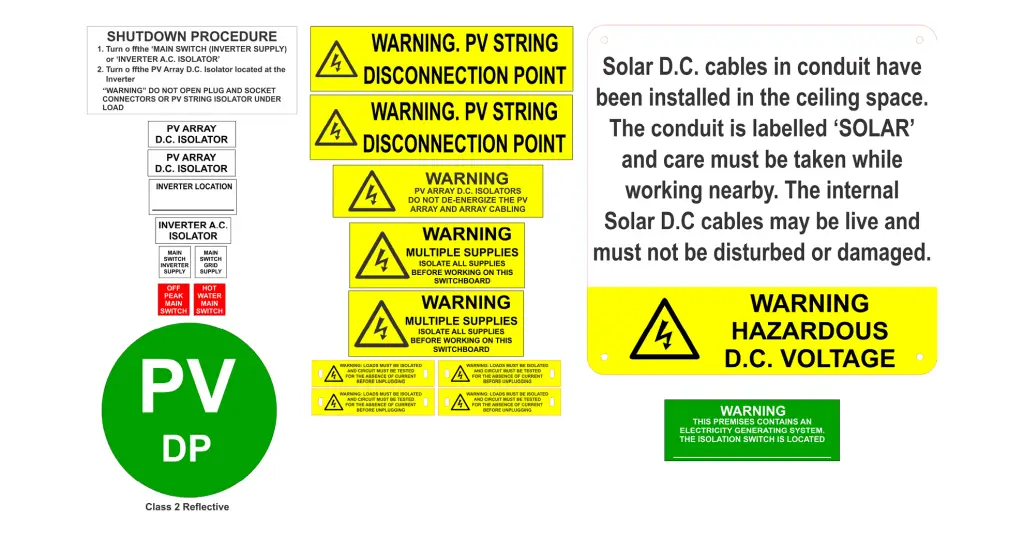

The Disconnection Point Kit

The Inverter

  • The Shutdown Procedure Label- Located adjacent to or visible from the equipment to be operated in the event of a shutdown e.g. Inverter
  • The Shutdown Procedure Warning Label- Located directly below the shutdown procedure
  • PV Array D.C. Isolator- Attached to the Load Break Disconnection device in a prominent location
  • Inverter A.C. Isolator- Located on the AC Isolator adjacent to the inverter

The Switchboard

  • PV DP Label- 100mm Circular Green reflective label to be located on or immediately adjacent to the main meter or switchboard
  • Warning This Premises Label- Located on the outside of the meter box or main switchboard, only required in VICTORIA
  • Warning Multiple Supplies Label- Located in the switchboard to which the Inverter is directly connected
  • Inverter Location- Located in the switchboard if the inverter is not immediately adjacent to the switchboard
  • Main Switch Inverter Supply- Located in the switchboard to which the Inverter is directly connected above the main switch for the inverter
  • Main Switch Grid Supply- Located in the switchboard to which the Inverter is directly connected above the main switch for the grid supply
  • Off Peak Main Switch/ Hot Water Main Switch- Located in the switchboard to which the Inverter is directly connected

The Roof

  • Warning PV String Disconnection Label- Attached to the PV Module or racking within 300mm of the disconnection point
  • Disconnection Point Cable Labels- Attached to both the positive and negative cables within 100mm of the disconnection point
  • Ceiling Label- Located adjacent to the access point for the ceiling or floorspace where solar cables are present

As per Australian Standards 5033:2021 & AS4777:2016, it is essential that you put your labels in the correct place to pass inspection. Get in touch with the team if you have any questions- sales@pvconnections.com.au; 1300 818 419.

Watch the rest of our videos in the series- What Goes Where
